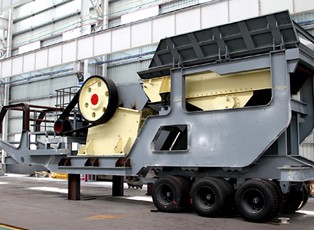

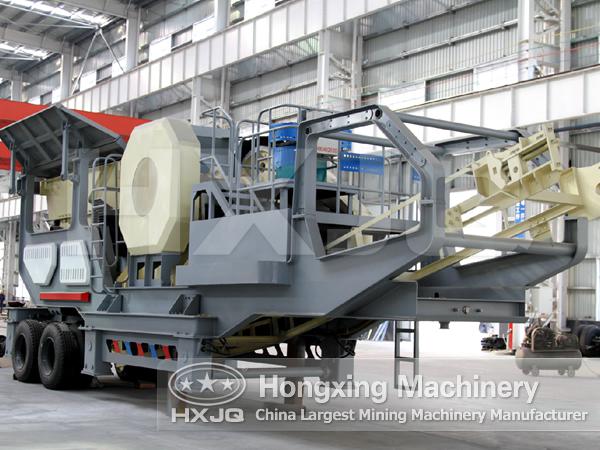

Mobile crushers is also sometimes referred to as mobile construction station, used to solve problems of small venues, difficulty in crushing hard material and difficult to move the machine in crushing production line.
Crusher mobile is flexible and mobile, can save a lot of infrastructure and relocation costs, on-site crushing of materials is available, and moving in advance is also OK along with the mining of raw materials. Thereby, it can significantly reduce the transportation costs.
Mobile crushers have flexible combination, strong adaptability, reliable performance and convenient maintenance.
Technical parameters of Mobile Crushing Station(Vibrating screen+cone crusher )
|
HX3S184PY09
|
HX3S185PY13
|
HX3S185PY0917
|
Transportation length
(mm)
|
14000
|
14500
|
14500
|
Transportation width
(mm)
|
2500
|
3100
|
3100
|
Transportation height
(mm)
|
4300
|
4500
|
4500
|
Mximum width
(mm)
|
14700
|
16400
|
16400
|
Mximum width
(mm)
|
3950
|
3950
|
3950
|
Mximum height
(mm)
|
6100
|
6410
|
6410
|
Weight
(t)
|
38.2
|
49.5
|
43
|
Tire configuration
|
Dualaxial
|
Dualaxial
|
Dualaxial
|
Cone crusher model
|
CS75
|
CS160
|
HP220
|
Discharging belt conveyor
|
B650×7M
|
B800×7.5M
|
B800×7.5M
|
Conveyor 1 for re-crushing material
|
B650×9.5M
|
B800×9.5M
|
B800×9.5M
|
Belt Conveyor 2 for re-crushing material
|
B650×5M
|
B800×6M
|
B800×6M
|
Belt conveyor under vibraing screen
|
B650×6M
|
B800×8.5M
|
B800×7M
|
Vibrating screen
|
3YZS1848
|
3YZS1854
|
3YZS1854
|
Technical parameters of Mobile Crushing Station(vibrating screen+impact crusher )
Model
|
HX3S184F210
|
HX3S186F214
|
HX3S216F315
|
Transportation length
(mm)
|
15200
|
16000
|
16000
|
Transportation width
(mm)
|
3100
|
3100
|
3200
|
Transportation height
(mm)
|
4400
|
4400
|
4500
|
Maximum width
(mm)
|
15600
|
16400
|
16600
|
Maximum width
(mm)
|
3400
|
3900
|
3950
|
Maximum height
(mm)
|
6300
|
6300
|
6500
|
Weight
(t)
|
35
|
41.5
|
48.5
|
Tire configuration
|
Dualaxial
|
Triaxial
|
Triaxial
|
Impact crusher
|
PF-1210
|
PF-1214
|
PF-1315
|
Discharging belt conveyor
|
B650×7M
|
B800×8.5M
|
B1000×9M
|
Conveyor 1 for re-crushing material
|
B650×9M
|
B800×10M
|
B1000×10M
|
Belt Conveyor 2 for re-crushing material
|
B650×5M
|
B800×6M
|
B1000×6M
|
Belt conveyor under vibraing screen
|
B800×6M
|
B800×7M
|
B1000×7M
|
Vibrating screen
|
3YZS1848
|
3YZS1854
|
3YZS2160
|
Technical parameters of Mobile Crushing Station(mobile impact crusher)
|
HX938F1210
|
HX938F1214
|
HX1149F1315
|
HX1349FW1318II
|
Transportation length
(mm)
|
12000
|
12000
|
13900
|
15450
|
Transportation width
(mm)
|
2550
|
2550
|
2900
|
2950
|
Transportation height
(mm)
|
3900
|
3900
|
4450
|
4500
|
Maximum width
(mm)
|
12500
|
12500
|
13900
|
15450
|
Maximum width
(mm)
|
3250
|
3260
|
3250
|
3250
|
Maximum height
(mm)
|
5100
|
5200
|
5200
|
5200
|
Weight
(t)
|
39
|
44
|
54
|
60
|
Tire configuration
|
Dualaxial
|
Dualaxial
|
Triaxial
|
Triaxial
|
Impact crusher
|
PF-1210
|
PFW-1214
|
PFW-1315II
|
PFW-1318II
|
The Maximum feeding size
(mm)
|
350
|
350
|
600
|
700
|
Iron Separator(Optional)
(t/h)
|
70-130
|
130-200
|
180-320
|
240-400
|
Capacity(t/h)
|
ZSW950×3800
|
ZSW950×3800
|
ZSW9110×4900
|
ZSW130×4900
|
Vibrztoring feeder
|
B800×8.5M
|
B800×8.5M
|
B1000×9.5M
|
B1200×11M
|
Main belt conveyor
|
B500×3.2M
|
B500×3.2M
|
B600×4M
|
B650×5M
|
Sude-opeening belt conveyor(optional)
|
320
|
320
|
400
|
440
|
Genset(Optional)(kw)
|
RCYD(C)-8
|
RCYD(C)-8
|
RCYD(C)-10
|
RCYD(C)-12
|
